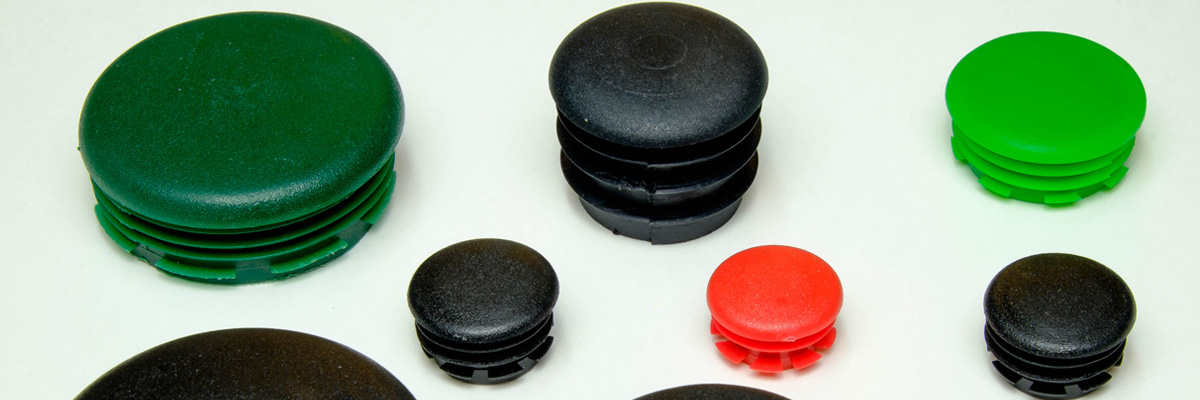

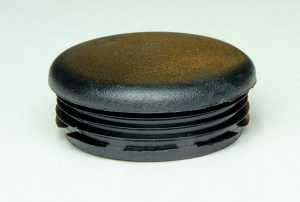

TAPA FINALREDONDOINTERIORESTRIADO |
 |

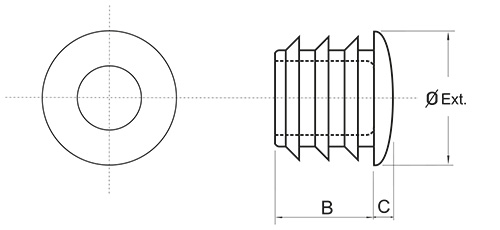

| Referencia | Ø Ext. | Ø Int. | B | C | GROSOR TUBO |
| STR-TT-10A | 10 | 5.5-8 | 7 | 1 | 1.0-2.5 |
| STR-TT-12A | 12 | 7.5-10 | 7.5 | 1.5 | 1.0-2.5 |
| STR-TT-14A | 14 | 9.5-12 | 7.3 | 1.7 | 1.0-2.5 |
| STR-TT-16A | 16 | 11.5-14 | 9 | 2 | 1.0-2.5 |
| STR-TT-18A | 18 | 13-16 | 7.5 | 3 | 1.0-2.5 |
| STR-TT-20A | 20 | 15-18 | 9 | 3 | 1.0-2.5 |
| STR-TT-22A | 22 | 17-20 | 9.5 | 3 | 1.0-2.5 |
| STR-TT-25A | 25 | 20-23 | 9 | 3.5 | 1.0-2.5 |
| STR-TT-28A | 28 | 23-26 | 9.5 | 3.5 | 1.0-2.5 |
| STR-TT-30A | 30 | 25-28 | 9.5 | 3.5 | 1.0-2.5 |
| STR-TT-32A | 32 | 27-30 | 10.5 | 4 | 1.0-2.5 |
| STR-TT-35A | 35 | 30-33 | 10 | 4.5 | 1.0-2.5 |
| STR-TT-38A | 38 | 30-33 | 7.5 | 3 | 2.5-4.0 |
| STR-TT-40A | 40 | 35-38 | 13 | 5 | 1.0-2.5 |
| STR-TT-45A | 45 | 40-43 | 13.5 | 5.5 | 1.0-2.5 |
| STR-TT-50A | 50 | 45-48 | 13.5 | 8.5 | 1.0-2.5 |
| STR-TT-60A | 60 | 54.5-58 | 13.5 | 8.5 | 1.0-2.75 |
