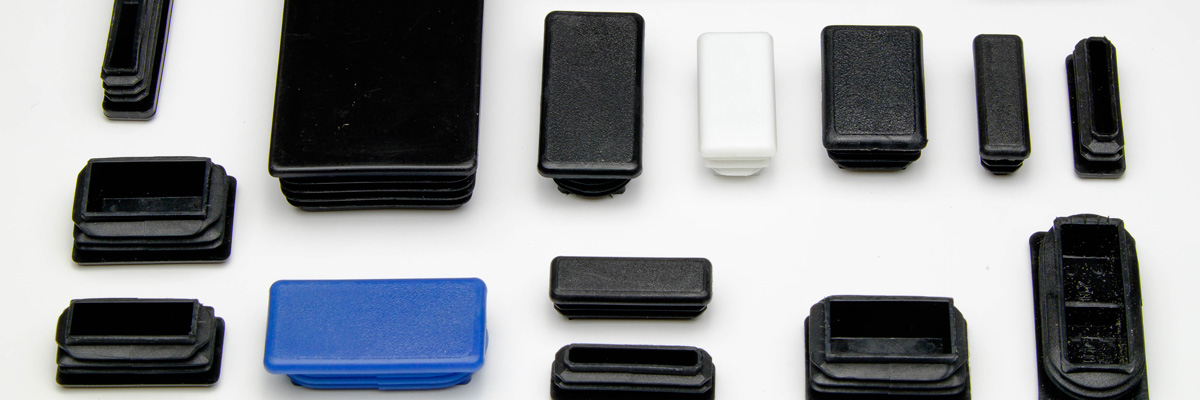

TAPA FINAL
|
 |

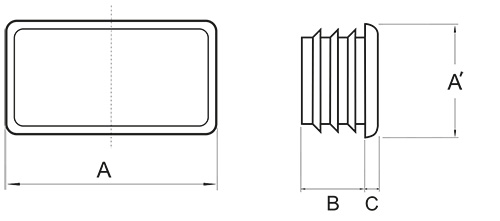

| Referencia | A x A’ | B | C | GROSOR TUBO |
| STR-TK-20x10A | 20×10 | 10 | 3 | 1.0-2.5 |
| STR-TK-25x15A | 25×15 | 10 | 3 | 1.0-2.5 |
| STR-TK-30x10A | 30×10 | 10 | 3 | 1.0-2.5 |
| STR-TK-30x15A | 30×15 | 10 | 3 | 1.0-2.5 |
| STR-TK-30x20A | 30×20 | 11 | 3 | 1.0-2.5 |
| STR-TK-40x10A | 40×10 | 10 | 3 | 1.0-2.5 |
| STR-TK-40x20A | 40×20 | 9 | 3 | 1.0-3.0 |
| STR-TK-40x30A | 40×30 | 10 | 3 | 1.0-3.0 |
| STR-TK-50x20A | 50×20 | 9 | 3 | 1.0-2.5 |
| STR-TK-50x30A | 50×30 | 12 | 2.5 | 1.0-2.5 |
| STR-TK-60x20A | 60×20 | 13 | 2.5 | 1.0-3.0 |
| STR-TK-60x30A | 60×30 | 13 | 2.5 | 1.0-3.0 |
| STR-TK-60x40A | 60×40 | 13 | 2.5 | 1.0-3.0 |
| STR-TK-80x40A | 80×40 | 13 | 3 | 1.0-3.0 |
