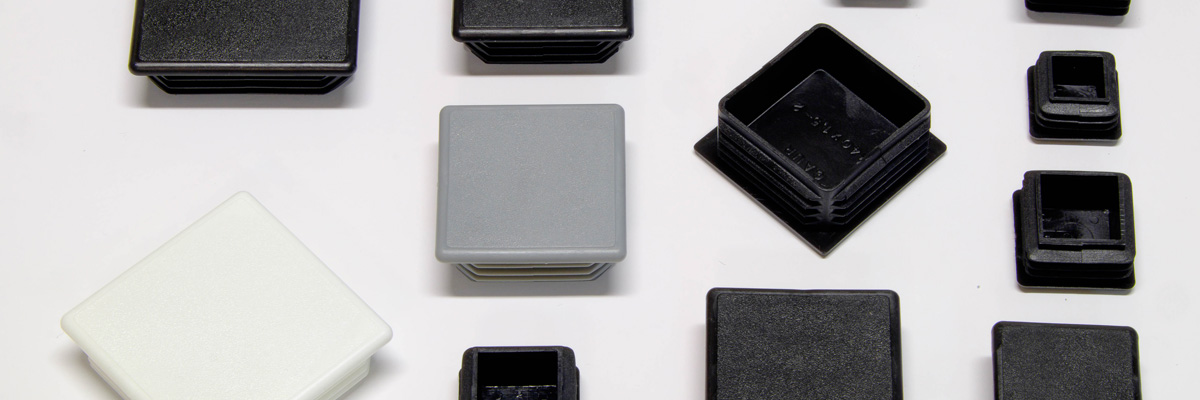

TAPA FINAL
|
 |

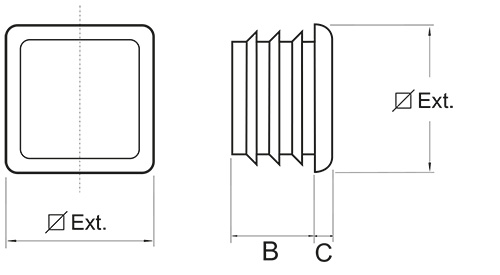

| Referencia | Ext. | Ø Int. | B | C | GROSOR TUBO |
| STR-TK-16A | 16×16 | 11.5-14 | 9 | 2 | 1.0-2.0 |
| STR-TK-18A | 18×18 | 12.5-16 | 9 | 2 | 1.0-2.25 |
| STR-TK-20A | 20×20 | 14-18 | 9 | 2 | 1.0-2.75 |
| STR-TK-25A | 25×25 | 19-23 | 12 | 2 | 1.0-3.0 |
| STR-TK-30A | 30×30 | 24-28 | 12 | 2.5 | 1.0-3.0 |
| STR-TK-35A | 35×35 | 29-33 | 13 | 2.5 | 1.0-3.0 |
| STR-TK-40A | 40×40 | 34-38 | 13 | 2.5 | 1.0-3.0 |
| STR-TK-45A | 45×45 | 39-43 | 13 | 2.5 | 1.0-3.0 |
| STR-TK-50A | 50×50 | 44-48 | 13 | 2.5 | 1.0-3.0 |
| STR-TK-60A | 60×60 | 54-58 | 13 | 2.5 | 1.0-3.0 |
