CONTERAREDONDAINTERIORESTRIADA |
 |

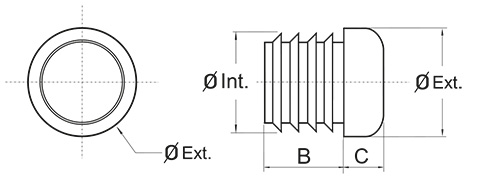

| Referencia | Ø Ext. | Ø Int. | B | C | GROSOR TUBO |
| STR-IP-12A | 12 | 8-10 | 9 | 5.5 | 1.0-2.0 |
| STR-IP-14 | 14 | 10-12 | 14 | 4 | 1.0-2.0 |
| STR-IP-16 | 16 | 12-14 | 14 | 5 | 1.0-2.0 |
| STR-IP-18 | 18 | 14-16 | 14 | 5 | 1.0-2.0 |
| STR-IP-20 | 20 | 16-18 | 16 | 6 | 1.0-2.0 |
| STR-IP-22 | 22 | 18-20 | 17 | 6 | 1.0-2.0 |
| STR-IP-23A | 23 | 19-21 | 17.5 | 10 | 1.0-2.0 |
| STR-IP-25 | 25 | 21-23 | 19 | 8 | 1.0-2.0 |
| STR-IP-26A | 26 | 22-24 | 18 | 9 | 1.0-2.0 |
| STR-IP-27A | 27 | 21-25 | 19 | 6.5 | 1.0-3.0 |
| STR-IP-28 | 28 | 24-26 | 19 | 6 | 1.0-2.0 |
| STR-IP-30 | 30 | 26-28 | 19 | 8 | 1.0-2.0 |
| STR-IP-32 | 32 | 28-30 | 19 | 8 | 1.0-2.0 |
| STR-IP-35 | 35 | 31-33 | 18 | 8 | 1.0-2.0 |
| STR-IP-38 | 38 | 34-36 | 18 | 5 | 1.0-2.0 |
| STR-IP-40 | 40 | 36-38 | 19 | 7 | 1.0-2.0 |
| STR-IP-42A | 42 | 36.5-40 | 19 | 6 | 1.0 – 2.75 |
| STR-IP-45 | 45 | 41-43 | 19 | 5 | 1.0-2.0 |
| STR-IP-48A | 48 | 42.5-46 | 19 | 6 | 1.0-2.75 |
| STR-IP-50 | 50 | 46-48 | 22 | 7 | 1.0-2.0 |
| STR-IP-55A | 55 | 49.5-53 | 19 | 6 | 1.0-2.75 |
| STR-IP-60 | 60 | 56-58 | 17 | 5 | 1.0-2.0 |
| STR-IP-63A | 63 | 58-61 | 19 | 5.5 | 1.0-2.5 |
| STR-IP-70A | 70 | 64-68 | 18.5 | 6.5 | 1.0-3.0 |
| STR-IP-76A | 76 | 70.5-74 | 19.5 | 5.5 | 1.0-2.75 |
| STR-IP-76AX3 | 76 | 67-70 | 19.5 | 5.5 | 3.0-4.5 |
| STR-IP-80A | 80 | 73-78 | 18.5 | 6.5 | 1.0-3.5 |
| STR-IP-85A | 85 | 79-82 | 21 | 6.5 | 1.0-3.0 |
| STR-IP-90A | 90 | 83-88 | 17 | 5 | 1.0-3.5 |
| STR-IP-100A | 100 | 96-98 | 17 | 5 | 1.0-2.0 |
| STR-IP-100AX3 | 100 | 92.5-95.5 | 17 | 5 | 2.25-3.75 |
| STR-IP-102A | 102 | 96-98 | 17 | 5 | 2.0-3.0 |
| STR-IP-110A | 110 | 102-106 | 21 | 6 | 2.0-4.0 |
| STR-IP-114A | 114 | 106-110 | 20 | 6 | 2.0-4.0 |
| STR-IP-120A | 120 | 112-116 | 20.5 | 6 | 2.0-4.0 |
